Hot Dog Roasted Shrimp Quail Meat Roasting Machine

——

Unit Price: 3000~15000 USD
Min. Order: 1 Set/Sets
inquiry

Basic Info

——

Model No.: GMS-YX30

place of origin: China

status: New

warranty period: 2 Years

Applicable industry: Hotels, Manufacturing Plant, Food &Amp; Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food &Amp; Beverage Shops

Out-of-warranty service: Video Technical Support, Spare Parts

Where to provide local services (in which countries are there overseas service outlets): None

Showroom location (in which countries are there sample rooms overseas): None

Video factory inspection: Provided

Mechanical test report: Provided

Marketing type: Hot Product 2019

Core component warranty period: 1 Year

Core components: Motor

Voltage: 380v

Heat Power: 16.5kw

Steam Power: 4.5kw

Cold Smoke Power: 3.7kw

Capacity: 30kg/Batch

Trolley Size: 670*800*875mm

Dimension: 2000*1000*1500mm

Weight: 300kg

Product Name: Hot Dog Roast Roasted Shrimp Quail Meat Roasting Machine

Additional Info

——

Packaging: wooden box package

Productivity: 30kg/batch

Brand: GEMS

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 50 sets per month

Certificate: CE

HS Code: 8419810000

Port: Qingdao,Shanghai,Guangzhou

Product Description

——

Introduction for Hot Dog Roast Roasted Shrimp Quail Meat Roasting Machine:

Our hot dog roasting machine is an indispensable equipment for making various sausages, seafood, smoked chicken, roast duck and other meat products. It has the functions of steaming, drying, baking, smoking, and coloring. Users can choose the appropriate one according to the different requirements of the product. It can realize the automatic conversion of each program segment.

Advantages of Our Hot Dog Roaster Machine:

1. Temperature control: independent (control) operating procedures, control needs to measure temperature and relative humidity. And continuously compare the specified/actual value.
2. Electric heating tube: The design adopted is a unique design on both sides of the wall. The advantage is that the smoke oil produced during the heating process will not adhere to the heating tube to produce tar. Moreover, the heating area is larger, the drying time is faster, and the temperature rises more rapidly.
3. Circulation system: adopts two-speed circulation fan, which effectively reduces power consumption by 30%. Optimize the air circulation state inside the cabinet to the greatest extent.
4. External smoke generator: It adopts a fully transparent window and is designed with buttons that can control the size of the smoke. The smoker and the flue are equipped with filters to facilitate cleaning and filtering of soot, and prevent smoke oil from being used for a long time, which will affect the flavor and appearance of the product.

For meat processing, we also provide meat grinder machine, meat bowl cutter, meat tumbler, also the meatball machine. We also provide customization service based on your demands.

Technical Parameters of Quail Meat Roaster:

Model Capacity Trolley Size Dimension
GMS-YX30 30kg/batch 670*800*875mm
2000*1000*1500mm
GMS-YX50 50kg/batch
900*820*1040mm
2100*1150*1715mm
GMS-YX100 100kg/batch
970*1040*1220mm
2100*1150*2020mm
GMS-YX150 150kg/batch
980*970*1560mm
2350*1220*2510mm
GMS-YX250 250kg/batch
1055*965*1860mm
2200*1220*3000mm
GMS-YX500 500kg/batch
1055*965*1860mm
2200*2250*3000mm
GMS-YX1000 1000kg/batch
1050*1050*1970mm
2200*4400*3000mm

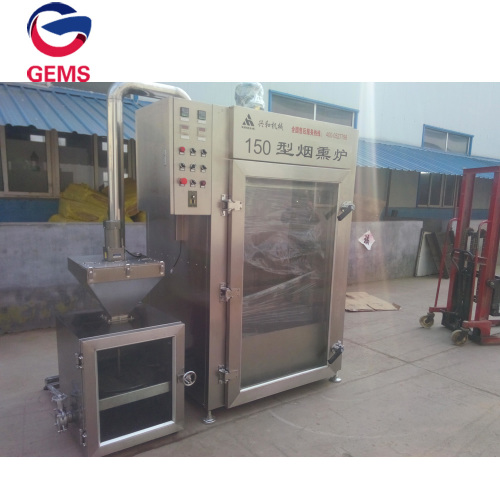

Detailed Photos Display of Meat Roasting Machine:

smoker machine01

Smoker Oven 2

smoker machine

Smoking Effect for Different Kinds of Meat:

Meat smoker

Whole Line of Meat/Sausage Processing Line:

meat processing line
