| Unit Price: | 1000~8000 USD |
|---|---|
| Min. Order: | 1 Set/Sets |
Model No.: GMS-JT50
status: New
Applicable industry: Hotels, Manufacturing Plant, Retail, Food &Amp; Beverage Shops, Food Shop, Garment Shops, Building Material Shops, Food &Amp; Beverage Factory, Printing Shops, Other, Advertising Company, Construction Works, Farms, Machinery Repair Shops, Restaurant, Energy &Amp; Mining, Home Use
Out-of-warranty service: Video Technical Support, Online Support
Where to provide local services (in which countries are there overseas service outlets): None
Showroom location (in which countries are there sample rooms overseas): None
Video factory inspection: Provided
Mechanical test report: Provided
Marketing type: Hot Product 2019
Core component warranty period: 1 Year
Core components: Motor
place of origin: China
warranty period: 2 Years
Application field: Vegetable Processing Plant, Commercial Catering, Frozen Food Factory, Seasoning Plant, Snack Food Factory, Cannery, Winery, Bakery, Fruit Processing Plant, Dairy Products Factory, Meat Processing Plants, Beverage Factory, Cooking Oil Factory
Material: 304 Stainless Steel
Capacity: 10-30kg/H
Power: 1.1kw
Weight: 67kg
Application: Sesame, Peanut, Cocoa, Almond, Soybean E
Rotation: 2820rpm
Dimension: 520*250*555mm
Diameter Of Rotor: 50mm

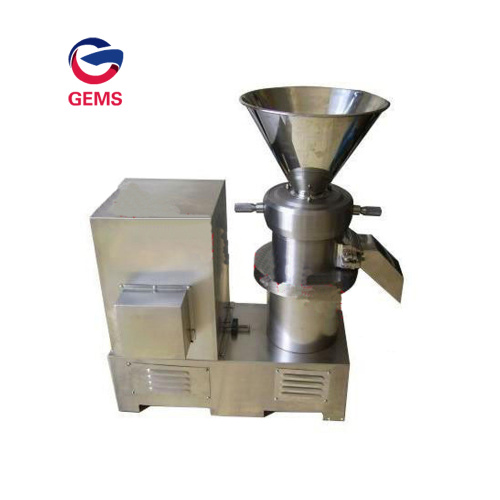

Name:: Malaysia Sesame Seed Paste Grinding Making Machine
Packaging: wooden box package
Productivity: 10-4000kg/h
Brand: GEMS
Transportation: Ocean,Land,Air,Express,courier
Place of Origin: China
Supply Ability: 500 sets per month
Certificate: CE
Port: Shanghai,Qingdao/Tianjin,Guangzhou
Work Principle for Sesame Seed Paste Grinding Making Machine:
The sesame paste grinding machine is fixed by different geometry, the relative rotation of the rotor under high speed rotation, when the material under the weight, air pressure and centrifugal force through adjustable stator clearance, subject to strong shear , Friction, impact force, high-frequency vibration and other complex forces, are effectively broken, dispersed emulsification and mixing, resulting in the ideal product.
If you want to use this colloid mill into production line, we can provide the horizontal type colloid mill.
Application of Sesame Seed Paste Grinding Making Machine:
Food industry: Aloe vera, pollen, pineapple, sesame, tea, ice cream, butter, jam, food filling, sesame paste, peanut butter, hot pepper sauce, juice, soybean, bean paste, red bean, peanut milk, milk protein, soy milk, drinks, dairy products, malted milk, essence, and emulsifying pigskin emulsified chicken bone cement and other animal skin, viscera, etc.
Chemical industry: Paint, paint, fuel catalyst, paint, lubricating oil, diesel, oil, emulsified asphalt, adhesive, plastic, glass, leather, toothpaste, detergent, shoe polish, cosmetics, soap, face cream, etc .
Pharmaceutical industry: Various kinds of syrup, nutrient solution, proprietary Chinese medicine, pollen, vaccines, biological products, all kinds of ointments, oral medications, such as emulsion, animal husbandry, etc.

Technical Parameters:
| Model |
Power |
Capacity |
Rotation |
Rotor Dia. |
Dimenison |
Weight |
|
GMS-JT50 |
1.1kw |
10-30kg/h |
2820rpm |
50mm |
520*250*555mm |
67kg |
|
GMS-JT80 |
4kw |
70-100kg/h |
2890rpm |
80mm |
685*335*928mm |
173kg |
|
GMS-JT110 |
7.5kw |
200-300kg/h |
2930rpm |
110mm |
700*430*1000mm |
235kg |
|
GMS-JT130 |
15kw |
400-600kg/h |
2930rpm |
130mm |
975*456*1054mm |
330kg |
|
GMS-JT180 |
22kw |
800-1000kg/h |
2930rpm |
180mm |
981*476*1124mm |
420kg |
|
GMS-JT240 |
45kw |
1500-2000kg/h |
2970rpm |
240mm |
1319*500*1276mm |
1000kg |
|
GMS-JT300 |
75kw |
3000-4000kg/h |
2970rpm |
300mm |
1400*620*1400mm |
1600kg |
We also produce the Sesame Seed Paste Grinding Making Machine:

We also have this peanut butter processing line, and other cocoa processing machine, such as cocoa peeling machine, cocoa nibs paste grinding machine, colloid mill and filling machine etc. Please contact me for more details.
